Curved Tempered Glass Applications
Curved tempered glass, also known as bent toughened glass, represents a remarkable fusion of strength, safety, and aesthetic fluidity. The production process begins with flat glass that is heated to approximately 600 degrees Celsius until it becomes pliable, then shaped against precision molds to achieve the desired curvature, and finally rapidly cooled to lock in both the curved form and the tempered strength. This process yields glass that is roughly four to five times stronger than ordinary annealed glass while maintaining optical clarity. When broken, tempered glass shatters into small, harmless granules rather than dangerous shards, making it an ideal material for environments where human safety is paramount.
Beyond the familiar applications in curtain walls and staircases, curved tempered glass has found diverse and innovative uses across commercial interiors, retail environments, furniture design, and specialized architectural features. Its ability to create seamless, flowing forms while providing structural integrity and transparency has made it a favorite among architects and designers seeking to transform ordinary spaces into extraordinary experiences.
Types of Curved Glass for Diverse Applications
The curved glass family encompasses several distinct product categories
Curved Tempered Glass or Bent Toughened Glass This is heat strengthened glass that is bent during the tempering process. It offers superior impact resistance, thermal stability withstanding temperature fluctuations up to 250 degrees Celsius, and mechanical strength. It is available in thicknesses ranging from 3mm to 19mm and can achieve minimum bending radii as tight as R200 for thinner panels.
Curved Laminated Glass Two or more curved glass layers bonded together with PVB Polyvinyl Butyral or SGP interlayers. This construction ensures that even upon breakage, the glass fragments adhere to the interlayer, preventing falls and maintaining some barrier function. Laminated curved glass is essential for overhead applications, glass floors, and high traffic areas.
Hot Bent Glass Produced by heating glass on a mold until it softens and bends under gravity or applied force, then cooled slowly. While this method can achieve complex shapes, the glass is not safety rated unless subsequently tempered. It is often used in decorative features where safety requirements are less stringent.
Double Curved Glass Featuring compound curvature in two axes, enabling spherical, ellipsoidal, or conical forms. These are the most challenging to manufacture and require advanced equipment and precise process control.
Technical Specifications for Interior and Commercial Use
When specifying curved tempered glass for interior applications, key parameters include
Thickness For interior partitions, display cases, and furniture, 6mm to 12mm is typical. For glass doors and large panels, 10mm to 15mm is common. Specialty applications like glass tables may use 15mm or thicker.
Bending Radius Minimum radius depends on thickness. For 6mm glass, R greater than or equal to 300mm; for 8mm, R greater than or equal to 400mm; for 10mm, R greater than or equal to 500mm; for 12mm, R greater than or equal to 700mm; for 15mm, R greater than or equal to 1000mm. Advanced manufacturers can achieve tighter radii for custom designs.
Dimensions Maximum curved panel sizes vary by equipment, typically up to 2400mm by 5000mm for single curved pieces. Larger sizes may be possible with specialized furnaces.
Edge Finishing All cutting, drilling, and edging must be completed before tempering. Common finishes include polished edges for a pristine look, ground edges for a satin finish, and pencil edges for comfortable handling in frequently touched applications.

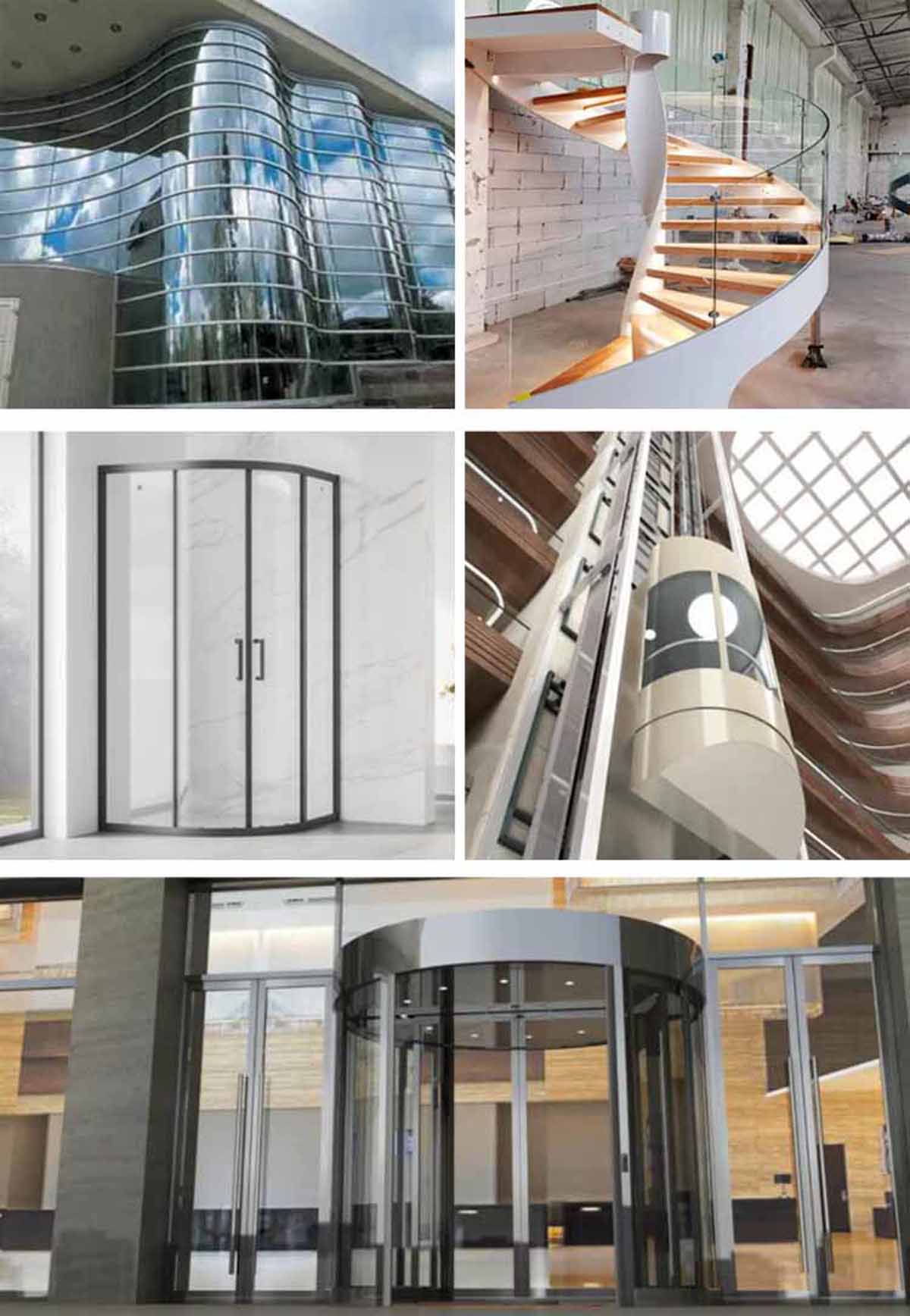

Applications of Curved Tempered Glass in Commercial and Interior Spaces
Curved tempered glass has transformed a wide array of interior and commercial environments
Retail Storefronts and Display Cases Premium retailers use curved glass for display windows, showcases, and shelving to create striking visual presentations. The smooth, uninterrupted curves draw the eye and eliminate sharp corners, making merchandise the focal point. High end jewelry stores and luxury boutiques often feature curved glass counters that convey sophistication and security.
Interior Partitions and Office Dividers Curved glass partitions are increasingly popular in modern office layouts, creating fluid, open plan spaces while maintaining acoustic and visual separation. The transparency preserves natural light flow, and the organic shapes soften the rigid geometry of traditional cubicles, fostering a more collaborative and welcoming atmosphere.
Glass Doors and Entrances Curved tempered glass is used for revolving doors, sliding doors, and custom entrance canopies. These installations make a powerful first impression, signaling innovation and quality. The structural integrity of tempered glass ensures safety even in high traffic commercial entrances.
Furniture and Tabletops Designer furniture incorporates curved glass for tabletops, shelving, and decorative panels. Glass coffee tables with curved tops, curving display shelves, and even curved glass desks have become statement pieces in contemporary interior design.
Atriums and Skylights Curved glass can be incorporated into interior atriums and overhead glazing to create dramatic light filled spaces. The curvature often follows the building structural lines, enhancing the architectural narrative.
Elevator Enclosures and Escalator Balustrades Curved glass panels are used to enclose elevators and line escalator sides, providing panoramic views while ensuring passenger safety. The tempered nature protects against impacts, and the smooth surfaces are easy to clean and maintain.
Bathroom and Shower Enclosures Luxury residential and hotel bathrooms feature curved glass shower screens and partitions that add a spa like feel. The curved panels eliminate hard edges, making small spaces feel more expansive and elegant.
Museum and Exhibition Displays Curved glass vitrines protect priceless artifacts while offering unobstructed viewing from multiple angles. The lack of distracting joints enhances the visitor experience and underscores the importance of the exhibits.
Advantages of Curved Tempered Glass for Interior Applications
The benefits of using curved tempered glass in commercial and interior settings are numerous
Safety Tempered glass offers superior impact resistance and breaks safely, meeting strict building codes for public spaces.
Aesthetics Curved forms create a sense of movement and elegance, enhancing any interior design scheme.
Light Transmission Glass maintains high transparency, allowing natural light to penetrate deep into interiors, reducing energy costs and improving occupant well being.
Customization Virtually any radius, angle, or compound curve can be achieved, enabling unique, tailor made designs.
Durability Tempered glass resists scratches, thermal stress, and environmental degradation, ensuring long service life with minimal maintenance.
Acoustic Performance When combined with laminated interlayers, curved glass can provide significant sound insulation, crucial for busy commercial environments.
Shandong Yaohua Glass Co Ltd A Leader in Curved Glass Manufacturing
Shandong Yaohua Glass Co Ltd, established in 1985 and headquartered in Jinan, Shandong Province, has earned a reputation as a premier manufacturer of high quality curved tempered glass for both architectural and interior applications. The company operates a modern production facility spanning over 50,000 square meters and has achieved an annual output value approaching 400 million RMB. Recognized as a national high tech enterprise, Shandong Yaohua has received numerous accolades including China Top 30 Processed Glass Enterprises, Shandong Province Specialized and Sophisticated Enterprise, and Shandong Province Manufacturing Single Champion.
Advanced Manufacturing Capabilities The company has made substantial investments in world class equipment. In 2022, Shandong Yaohua introduced the state of the art LiSEC 4SG insulating glass production line from Austria, integrated with existing LiSEC systems to create China first fully connected production line from raw sheet storage to finished insulating glass products. Two additional Glaston 4SG production lines were added in 2024. For curved glass production, the company has completed the upgrade of five high standard flat bent tempering furnaces, including the North Glass 8 meter double chamber three air grid furnace. Over three years, Shandong Yaohua has invested more than 100 million RMB to achieve fully automated, intelligent process control throughout its operations.
Impressive Production Capacity The company annual production capacity includes Low emission LOW E single silver, double silver, and triple silver 4SG insulating glass approximately 1 million square meters, High quality laminated glass with PVB and SGP interlayers approximately 500,000 square meters, Super large, super wide, and super thick three super tempered glass approximately 3.5 million square meters, and Specialty deep processed glass such as fire resistant glass, bird collision prevention glass, hurricane resistant glass, sports court glass, subway platform doors, and biological testing cabinets.
Global Quality Certifications Shandong Yaohua holds ISO9001 and ISO45001 certifications, and its products have passed China National Safety Glass 3C Certification, National Green Building Material Certification, Australian Standard Certification, Korean KS Certification, EU CE Certification, US SGCC Certification, and North American IGCC Certification. The company also holds multiple national patents for independent intellectual property.
International Project Portfolio The company serves customers in over 80 countries and regions, exporting more than 1,000 containers annually. Their glass has been installed in numerous landmark projects worldwide, including Jinan Yaoqiang Airport China Eastern Base with 4SG, Qingdao Shangjunfu Fourth Generation Residential with 4SG, Ordos Kangtai Hotel with 4SG, Beijing Intellectual Property Publishing House Office Building, Qingdao Hisense Financial Center, Busan Opera House in South Korea, BMW Office Building in Gyeonggi Province South Korea, PyeongChang Winter Olympics Venues, Bahrain NECC New Convention and Exhibition Center, and Lusaka International Airport in Zambia.
Commitment to Innovation and Quality Shandong Yaohua continues to advance its curved glass technology, regularly presenting high end curved tempered glass samples at international exhibitions that demonstrate precise temperature control, smooth large radius surfaces without defects, and full tempering strength. The company curved glass products are ideal for interior partitions, display cases, furniture, elevator enclosures, and all commercial applications where aesthetics and safety are equally important.
Conclusion
Curved tempered glass has revolutionized interior design and commercial architecture, offering unprecedented design freedom without compromising safety or performance. From elegant retail displays to fluid office partitions, from designer furniture to grand entrance canopies, the applications are as diverse as the imaginations of architects and designers. Shandong Yaohua Glass Co Ltd, with its advanced manufacturing infrastructure, comprehensive quality certifications, and proven track record in global markets, stands ready to supply the highest quality curved tempered glass for any project. The company relentless pursuit of technological excellence and customer satisfaction ensures that even the most demanding curved glass specifications are met with precision, reliability, and artistry. For architects, interior designers, and building owners seeking to make a lasting impression, Shandong Yaohua curved tempered glass offers the perfect blend of strength, beauty, and innovation.
